Concrete doesn’t forgive mistakes. Once it sets, a wall in the wrong spot stays there. Fixing it means breaking, hauling and pouring again. That’s why construction surveying happens before the forms go up, not after. A survey crew marks where the building belongs. They set the points that guide every form and rebar cage. Get those points right, and the pour goes smoothly. Get them wrong, and the error hardens into the foundation. This guide walks developers through what the survey crew checks before that first pour. The goal is plain. Catch layout problems while they still cost pennies, not weeks.

What Survey Crews Check Before Formwork Begins

Before any form gets built, the crew sets a frame of reference. They start from known control points on the site. These points have fixed, measured positions. Everything else gets placed from them. So the control points come first, every time.

Next come the layout points. The crew marks building corners and key spots right on the ground. They snap or stake reference lines that show where walls and footings run. These lines act like a map for the former carpenters. The forms follow the marks, not a guess.

The crew also confirms the planned foundation spots. They check that each footing, pier and wall line matches the design position. Grade and depth get noted too. All of this happens on open ground. That’s the easy time to move a line a few inches.

Why Small Layout Errors Can Follow the Foundation Upward

A foundation is the base for everything above it. Set it a bit off, and the error rides upward. Walls shift. Columns land off their grid. Door and window openings drift from where they should sit.

Picture a corner placed two inches out. That two inches doesn’t stay small. It can throw off the framing that lands on top. It can push a column off the beam it needs to meet. Small at the base often means large by the roof.

The trouble also hides inside the numbers. A footing set too low can leave thin cover over the steel. A wall built off line can shrink a room or block a door swing. These issues surface much later, when they’re harder to trace.

Catching this early is cheap. A crew can fix a mismark in minutes before the pour. After the pour, the fix means saws, jackhammers and lost days. The math is simple. Check the position first, and you skip the demolition later.

Checking Foundation Locations Against the Construction Plans

Marks on the ground mean little on their own. They have to match the approved plans. So the crew measures the field and lines it up against the drawings. Every key point gets a check.

Building corners come first. The crew confirms each corner sits at its planned coordinate. Then they check offsets, which are the set distances from a line or an edge. Grid lines get verified next, since columns and walls hang off that grid. One shifted grid line can move a whole row of columns.

This check is about position, not paperwork. The crew asks one plain question. Do the forms and steel in the field sit where the design says they should? When a point is off, they flag it before the forms lock in. That keeps the built work true to the drawings.

The Survey Checks That Help Forms Stay in the Right Place

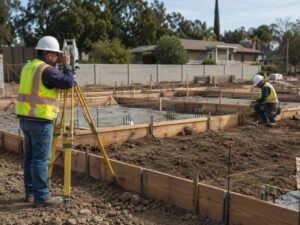

Forms hold the wet concrete in shape. If a form sits wrong, the concrete sets wrong. So the crew checks the forms once they’re built, right before the pour. This is the last clear look at the layout.

They verify form position against the marks. They measure the inside dimensions to confirm width and length. They shoot elevations to check top of form and footing depth. A form that’s an inch too low changes the finished height. A form that’s twisted changes the shape of the wall.

The crew watches the embedded parts too. Anchor bolts, sleeves and blockouts have to sit at the right spot. A misplaced anchor bolt can leave a steel column with nowhere to bolt down. So the survey check covers these buried items before the concrete hides them.

Timing is the whole point of this step. Once concrete fills the forms, these points vanish. You can’t measure a footing that’s buried under a slab. So the crew locks down every key number while it’s still in plain view. That check is your last cheap chance to be sure.

What Developers Should Confirm Before the Concrete Pour

You don’t need to run the instrument yourself. You do need to confirm the right checks happened. Walk through this short list before the pour.

• Confirm the crew set the layout from known control points, not from assumed marks.
• Check that building corners and grid lines were verified against the current plans.
• Make sure form position, dimensions and elevations were all measured.
• Ask if any plan revisions came in late, then confirm the layout matches the newest set.
• Note any field surprises, like soft soil or a shifted utility, and clear them first.

One habit saves the most grief. Settle every layout question before the truck backs up to pour. A question asked at that moment is cheap to answer. The same question asked next month costs real money. Get the sign off from your surveyor in writing, then pour with confidence.

Frequently Asked Questions

What is construction surveying?

Construction surveying is the work of marking where a building goes before and during the build. Survey crews set control points, layout lines and grade marks that guide the field crew. On a foundation job, they place the points that forms and rebar follow. The work keeps the finished structure true to the approved plans.

When should a surveyor check the site before a pour?

The best time is right after the forms are built and before any concrete arrives. At that stage the layout is still open to view and easy to fix. The crew can measure form position, width and elevation while the numbers are visible. Waiting until the pour starts leaves no safe way to correct a mistake.

What happens if a foundation is poured in the wrong spot?

A misplaced foundation can force walls, columns and openings out of position. The error often grows as the building rises above it. Fixing hardened concrete means cutting, removing and pouring again, which costs time and money. A quick survey check before the pour is the cheap way to avoid all of that.
